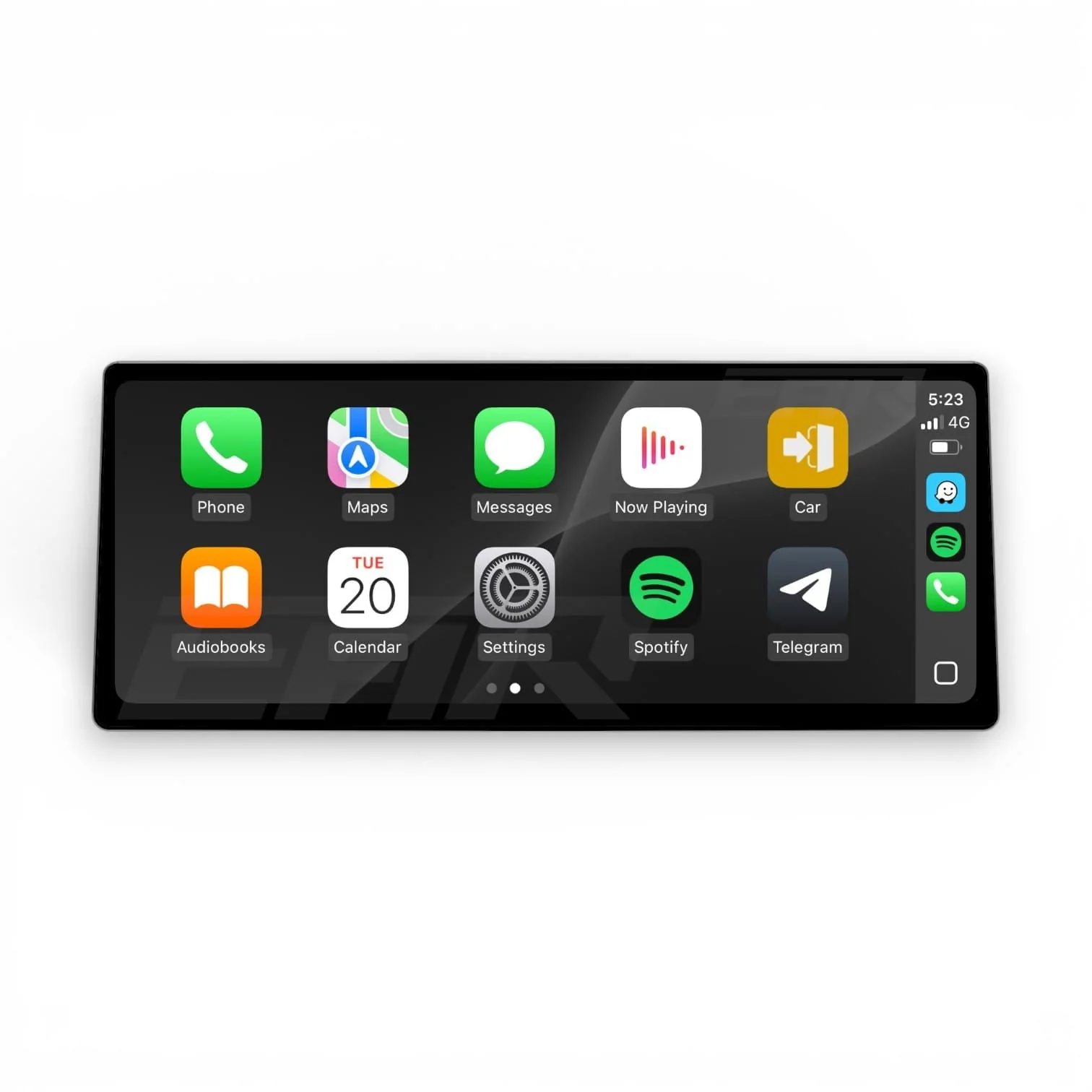

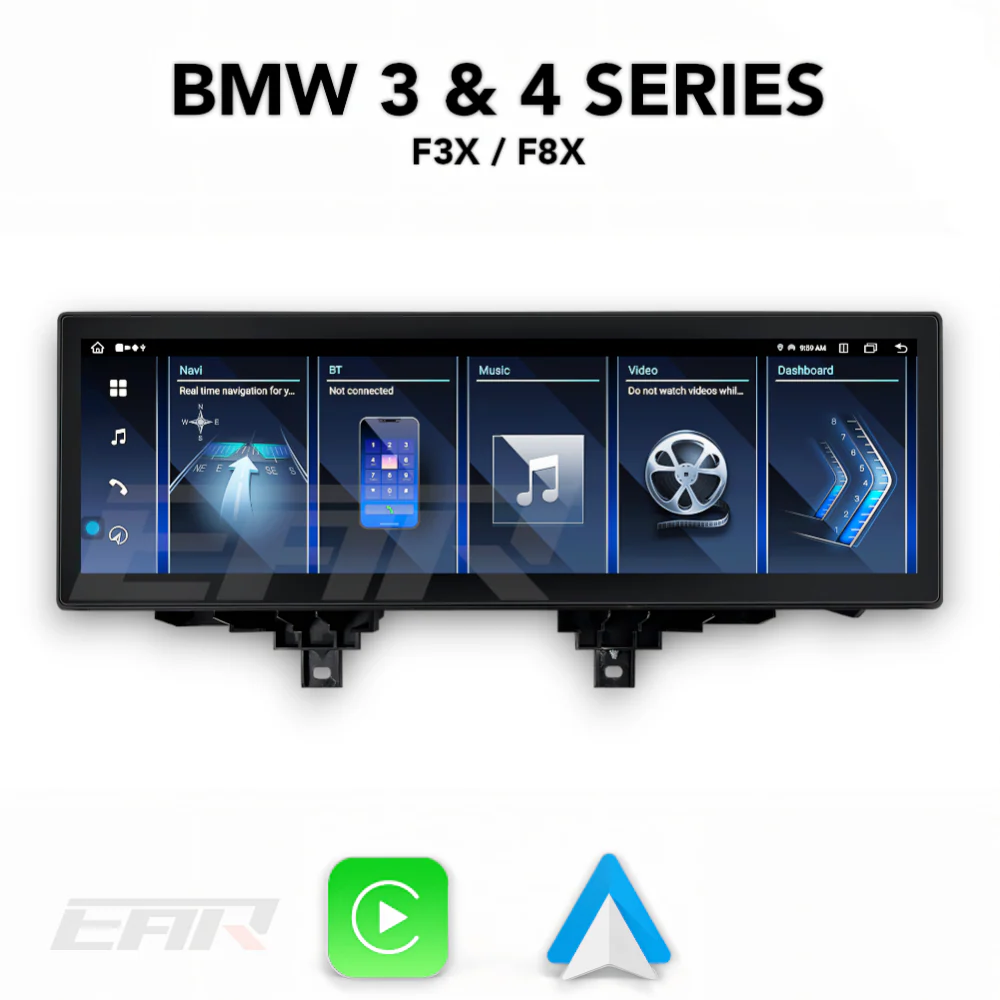

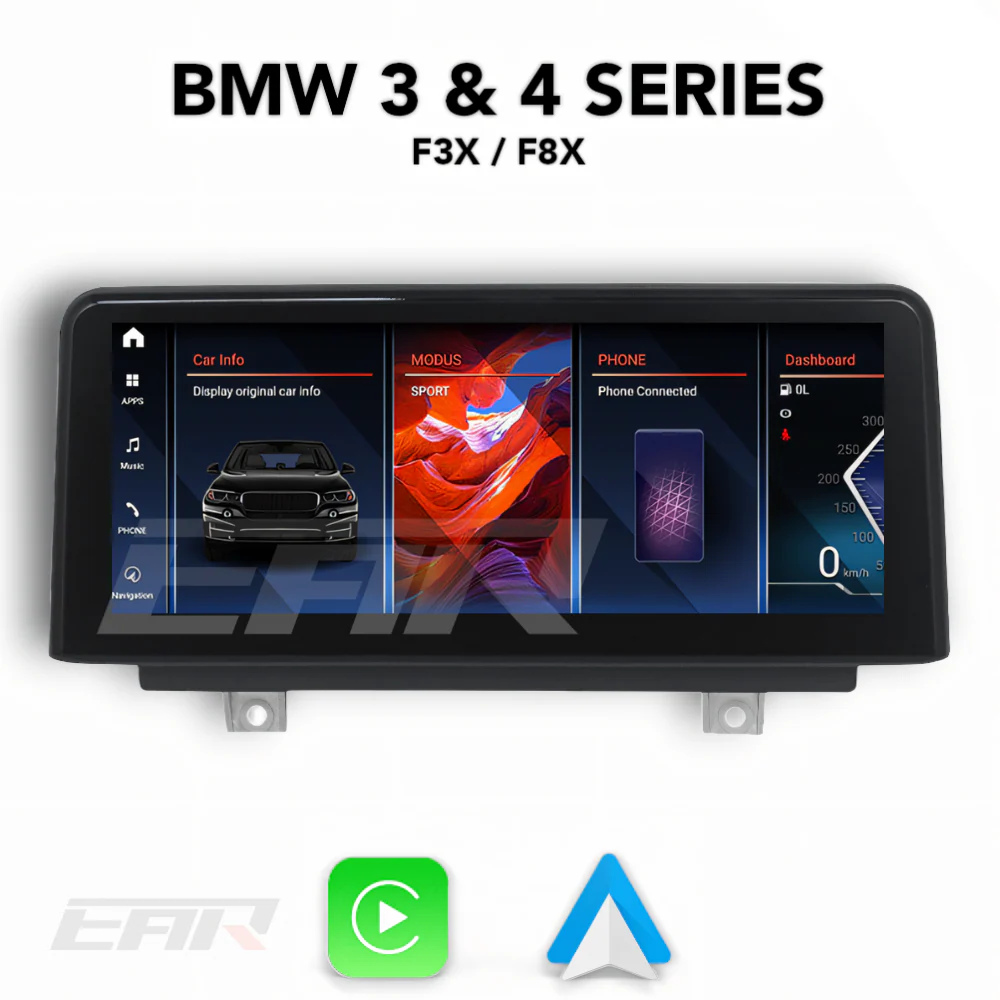

BMW 3 & 4 Series (F3X/F8X) Multimedia Touchscreen Display with Wireless CarPlay & Android Auto

This OEM+ multimedia touchscreen upgrade is designed specifically for the BMW 3 & 4 Series F3X/F8X platform. Powered by a fast and stable Linux operating system, it adds Wireless Apple CarPlay and Android Auto while fully retaining the original BMW interface, controls, audio system, and vehicle functionality. The result is a modern driving experience with factory-level integration and reliability.

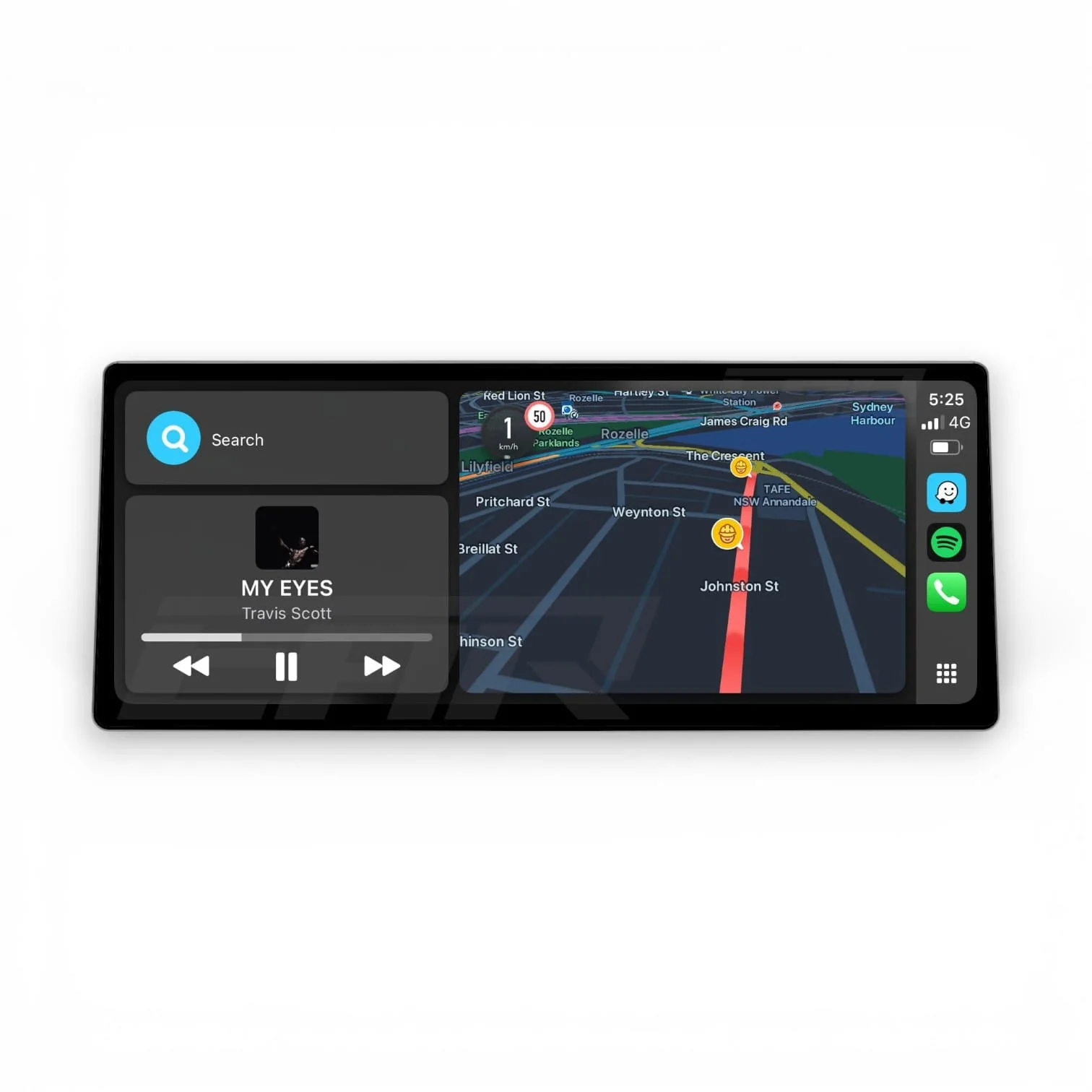

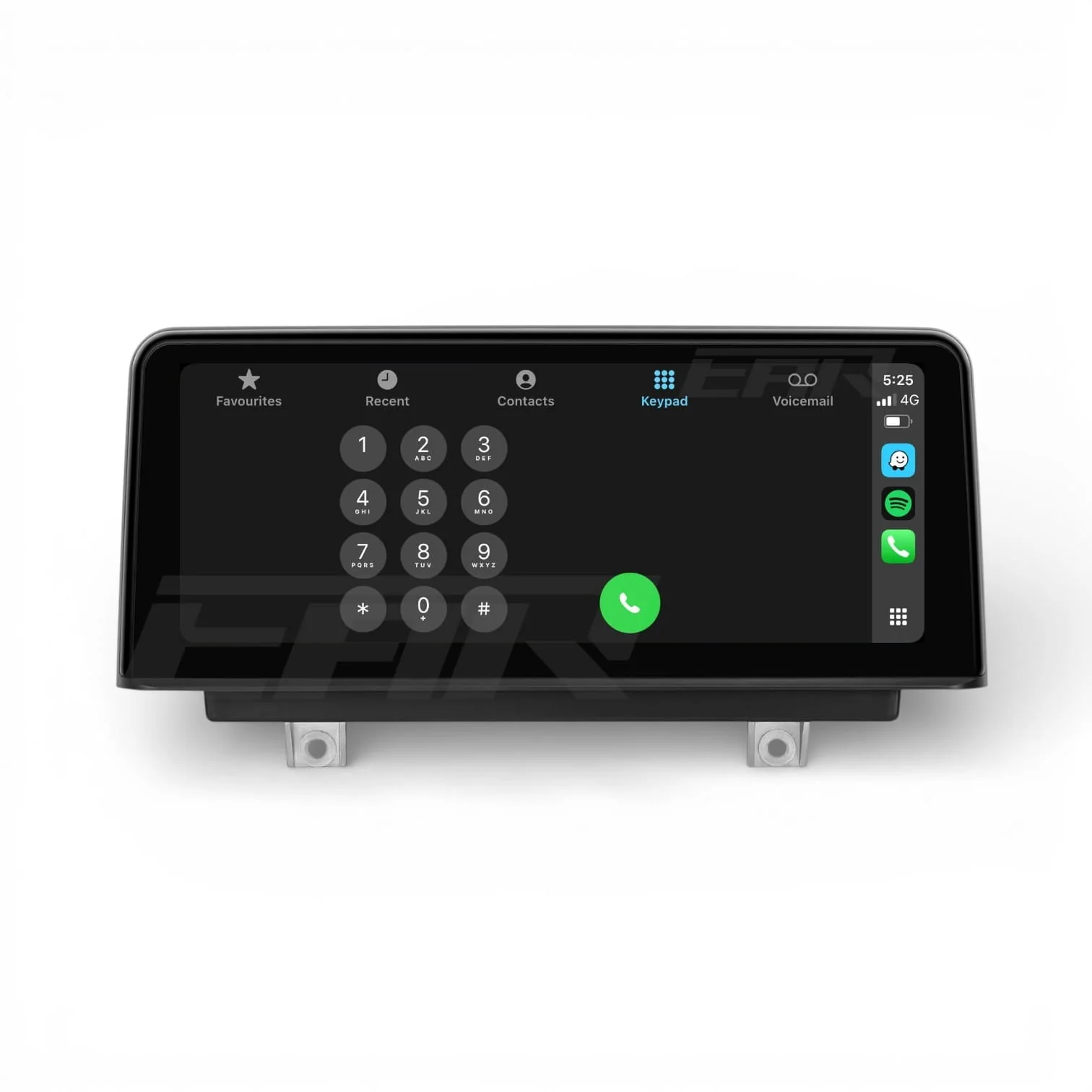

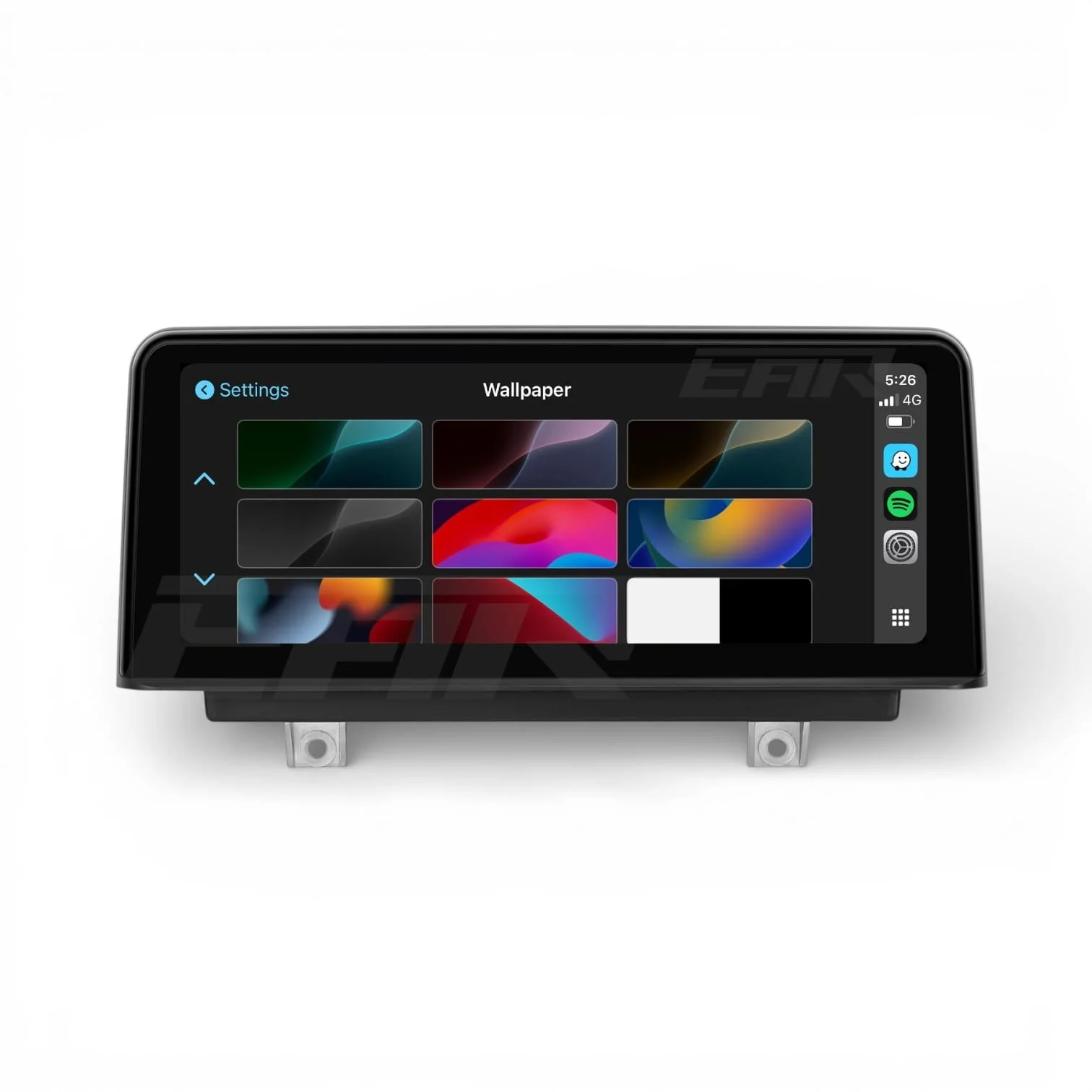

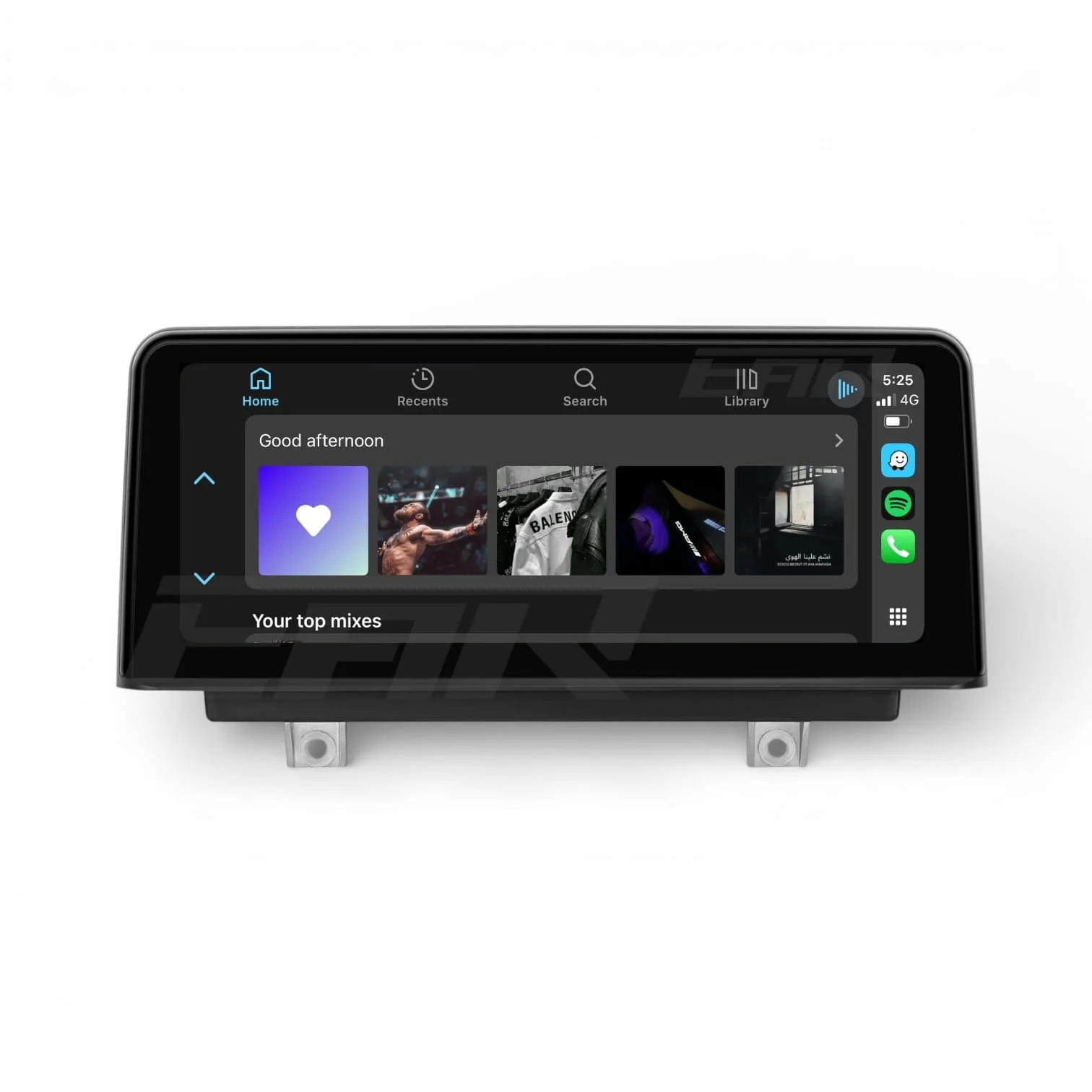

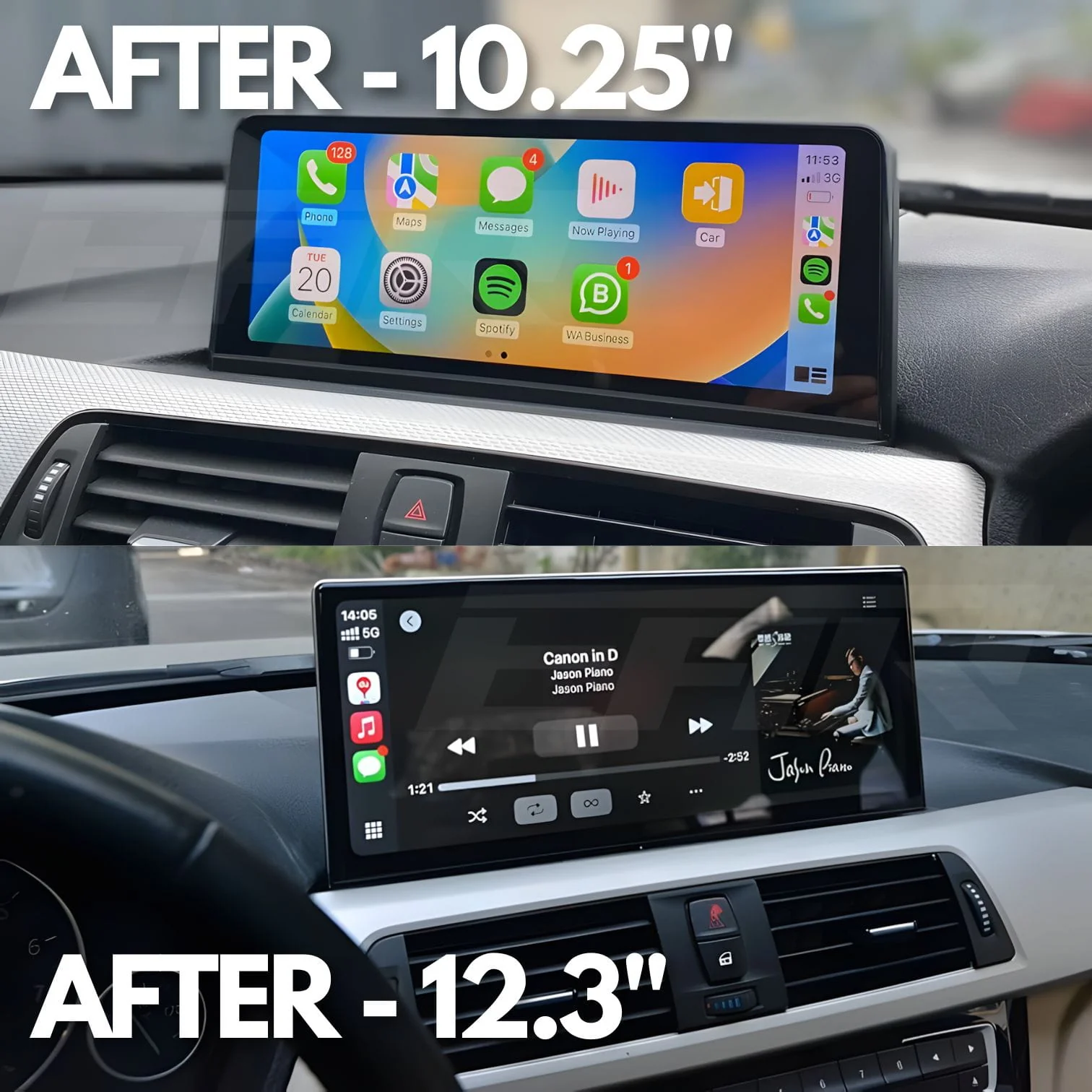

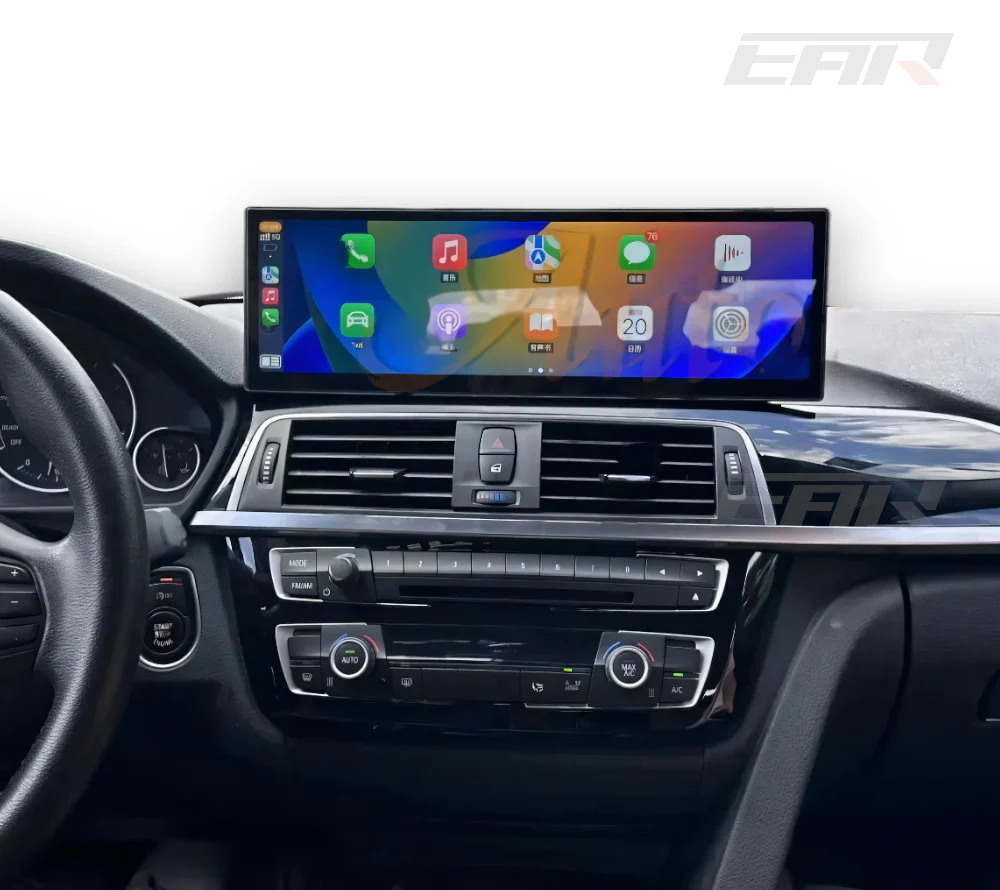

Two display sizes are available to suit different preferences: a 10.25″ display with standard OEM-style bezel, and a 12.3″ display featuring a new ultra-thin bezel for a more modern, edge-to-edge appearance.

Features

Feature	Details
Operating System	Linux-based system for fast, stable performance

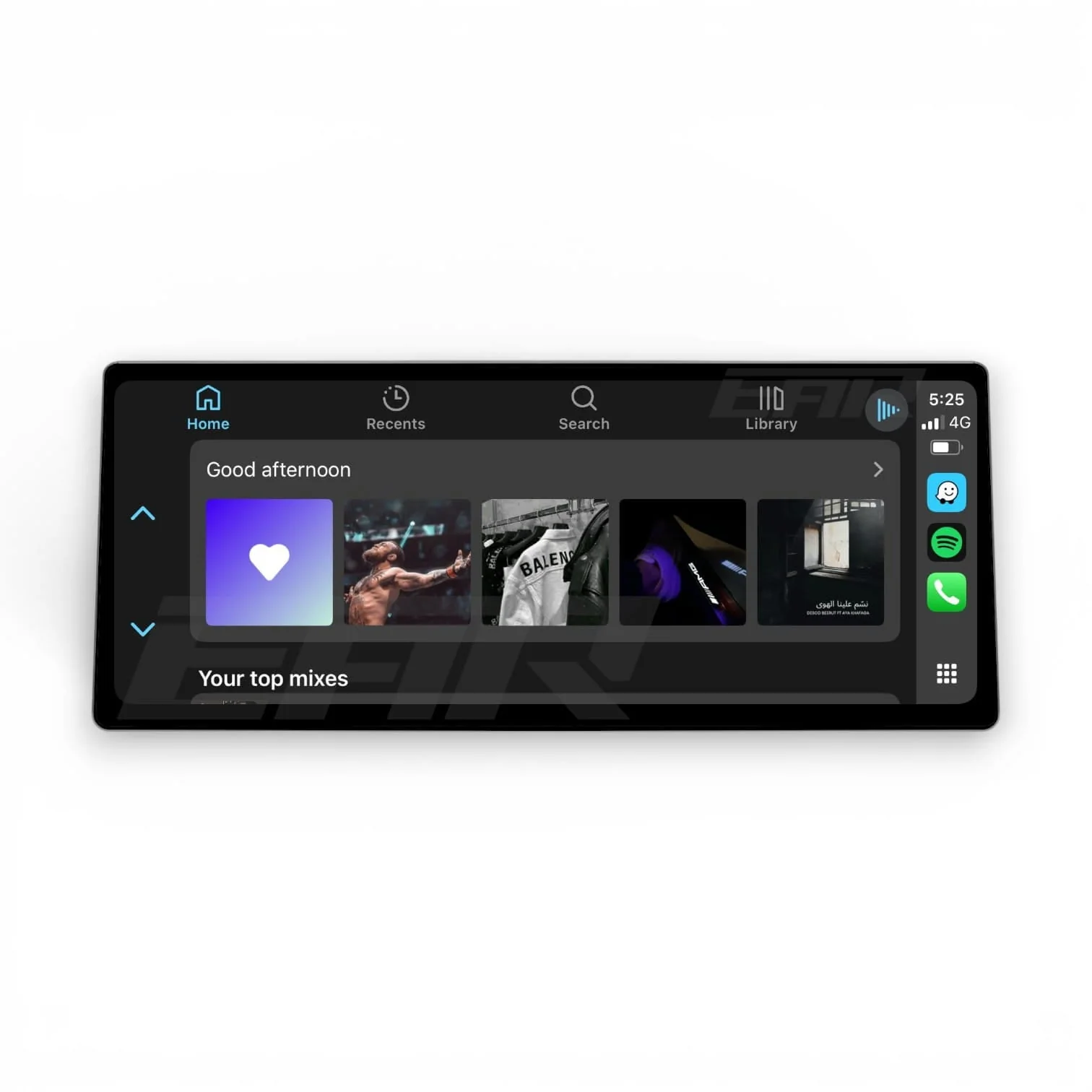

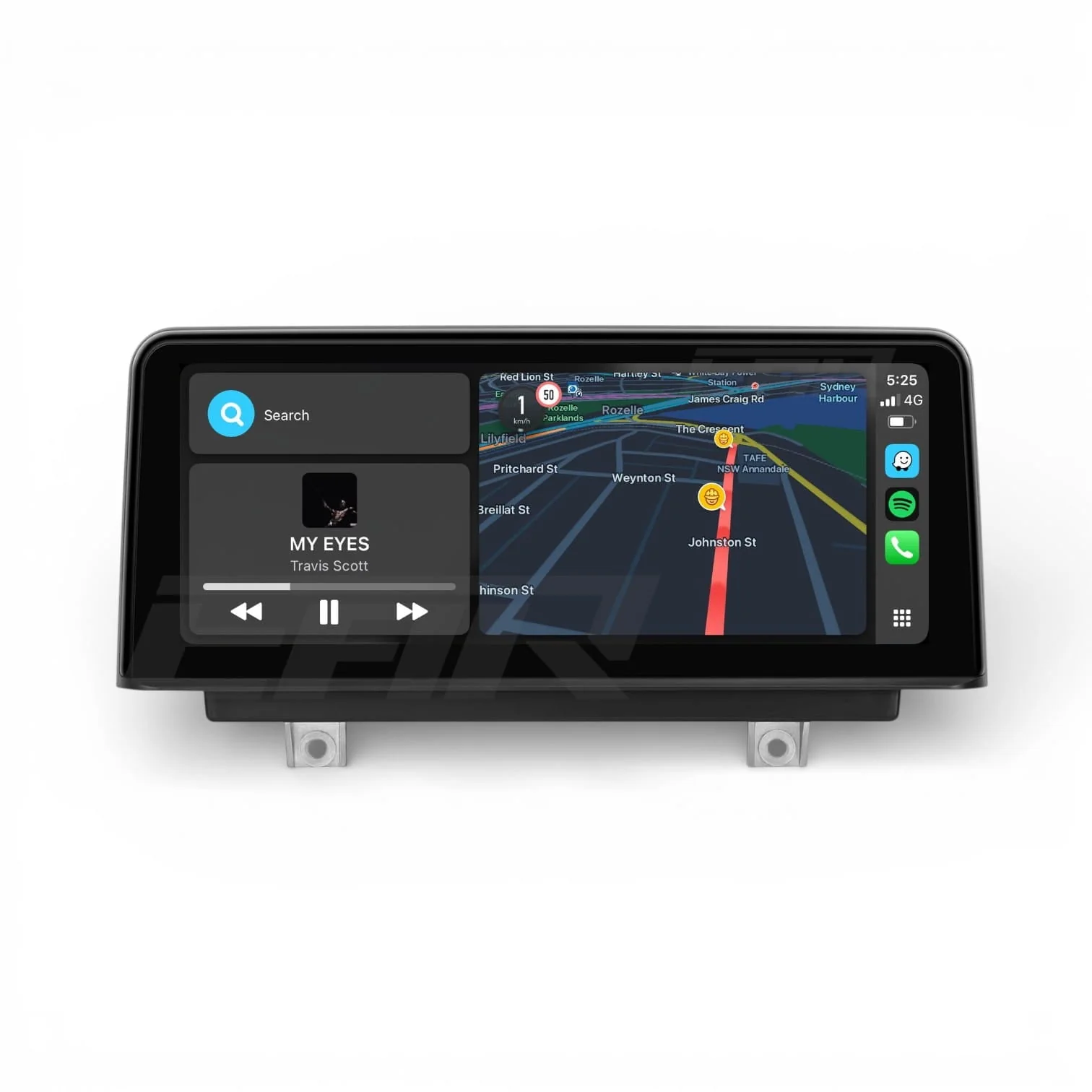

Connectivity	Wireless & wired Apple CarPlay and Android Auto
Touchscreen	High-response capacitive touchscreen
Display Quality	1920 × 720 IPS panel with wide viewing angles
Brightness Control	Automatic brightness adjustment
Factory Integration	Retains original BMW iDrive interface, cameras, sensors and vehicle menus
Controls	Fully compatible with steering wheel controls and iDrive knob
Audio Integration	Uses original BMW Bluetooth, speakers, and microphone. AUX cable is included/optional, as the system supports external AUX as well.

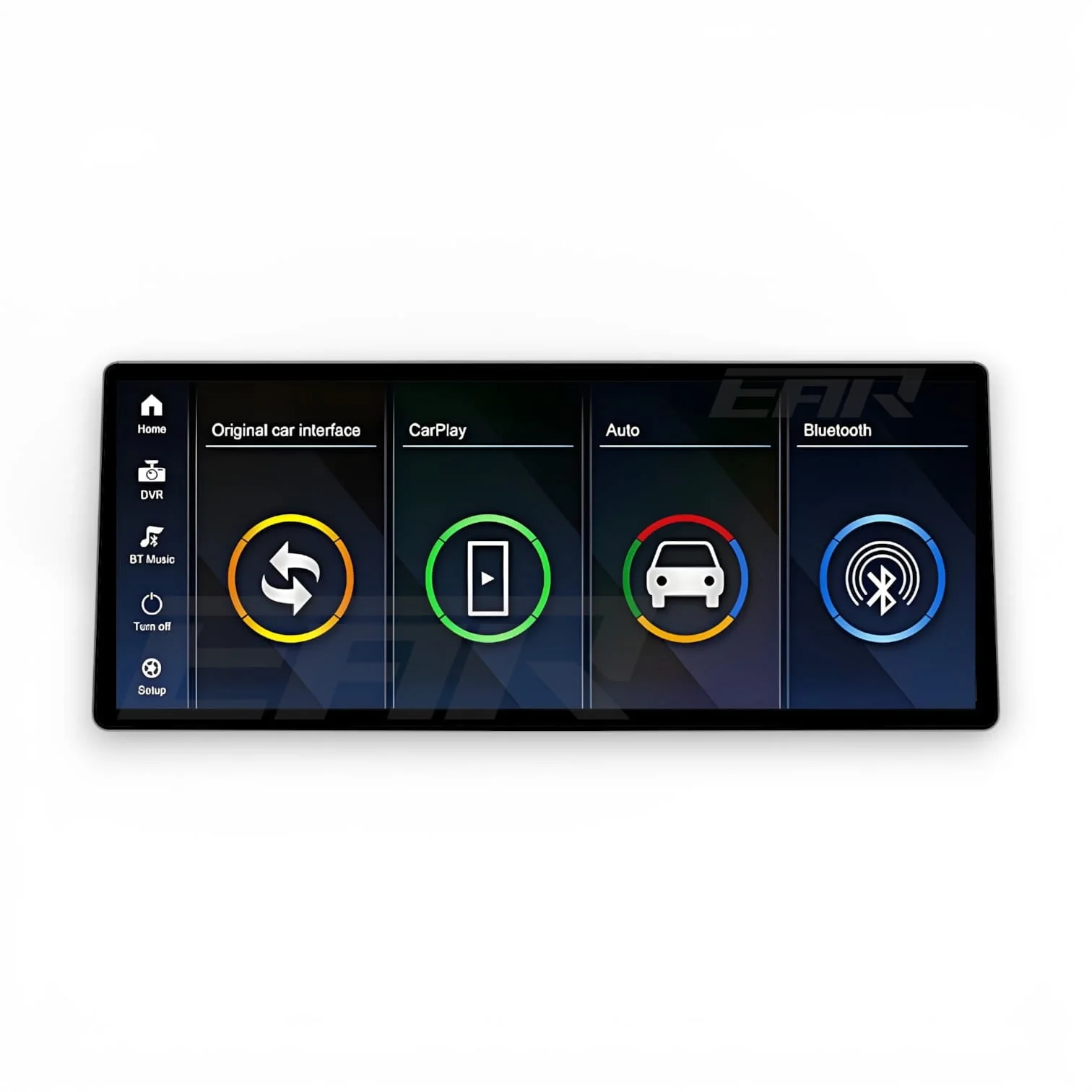

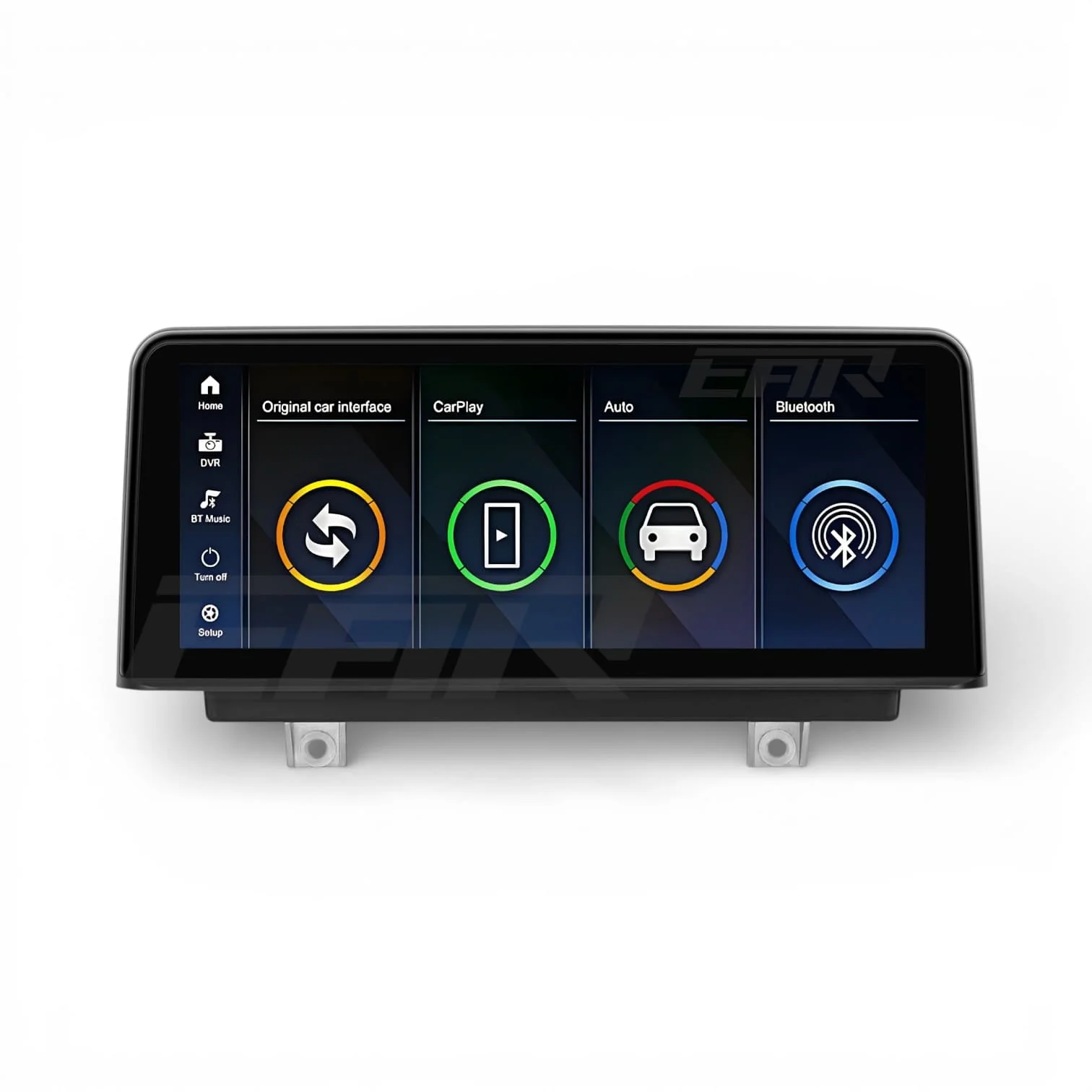

Interface Switching	Instant switching between factory system and CarPlay / Android Auto
Camera Support	Compatible with factory and aftermarket reverse, front, 180° and 360° cameras
Mirroring	Supports AirPlay and wireless / wired screen mirroring
Sound Adjustment	Built-in EQ adjustment
Phone Connectivity	Supports multiple phone connections

Fitment

Make	Model	Chassis Code	Year	System Version
BMW	3 Series	F30 / F31 / F34	2011 – 2017	CIC-High / NBT / NBT EVO
BMW	4 Series	F32 / F33 / F36	2013 – 2017	CIC-High / NBT / NBT EVO
BMW	M3 / M4	F80 / F82 / F83	2014 – 2017	CIC-High / NBT / NBT EVO

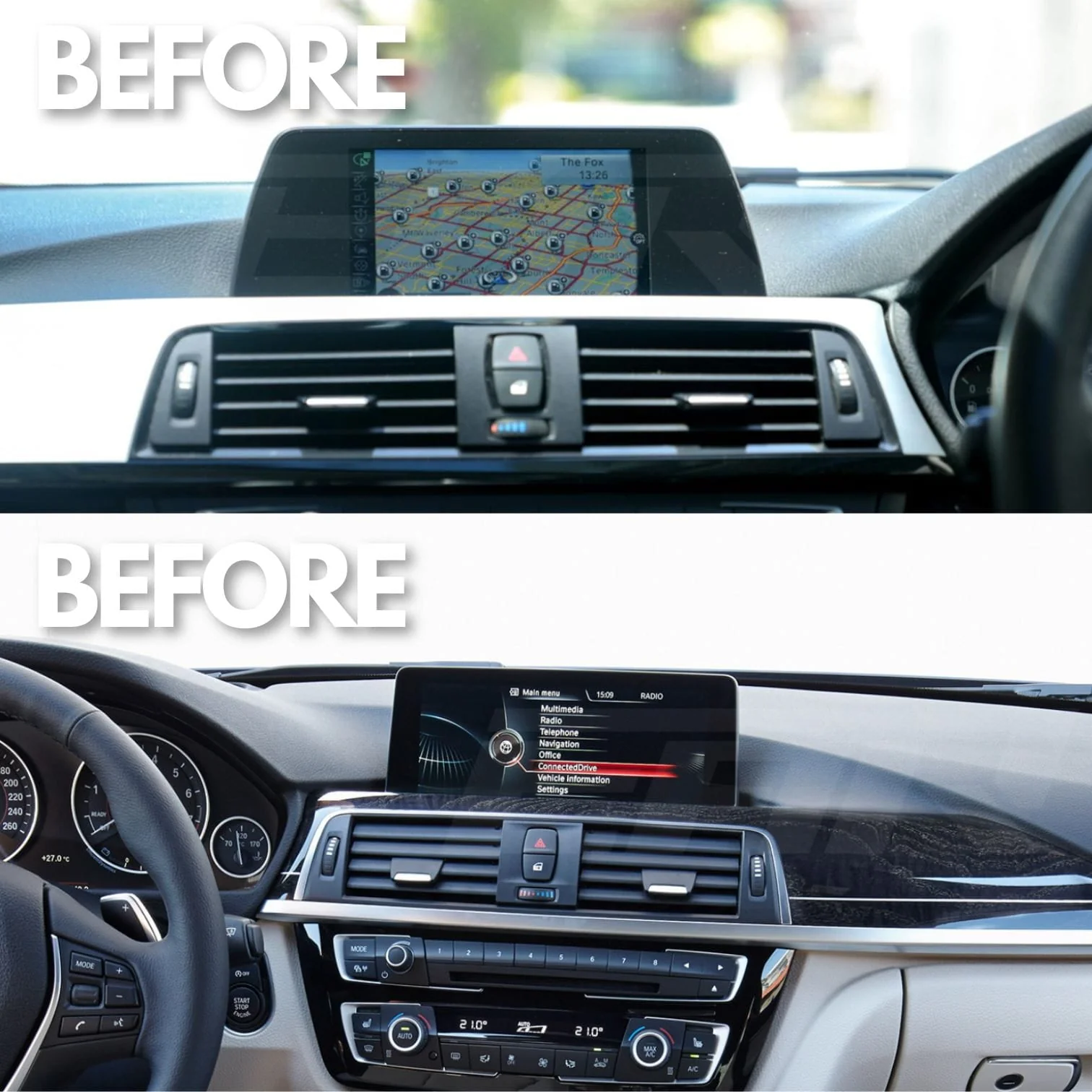

Please refer to the image below to determine whether you have either the CIC-High/NBT, or EVO factory BMW system:

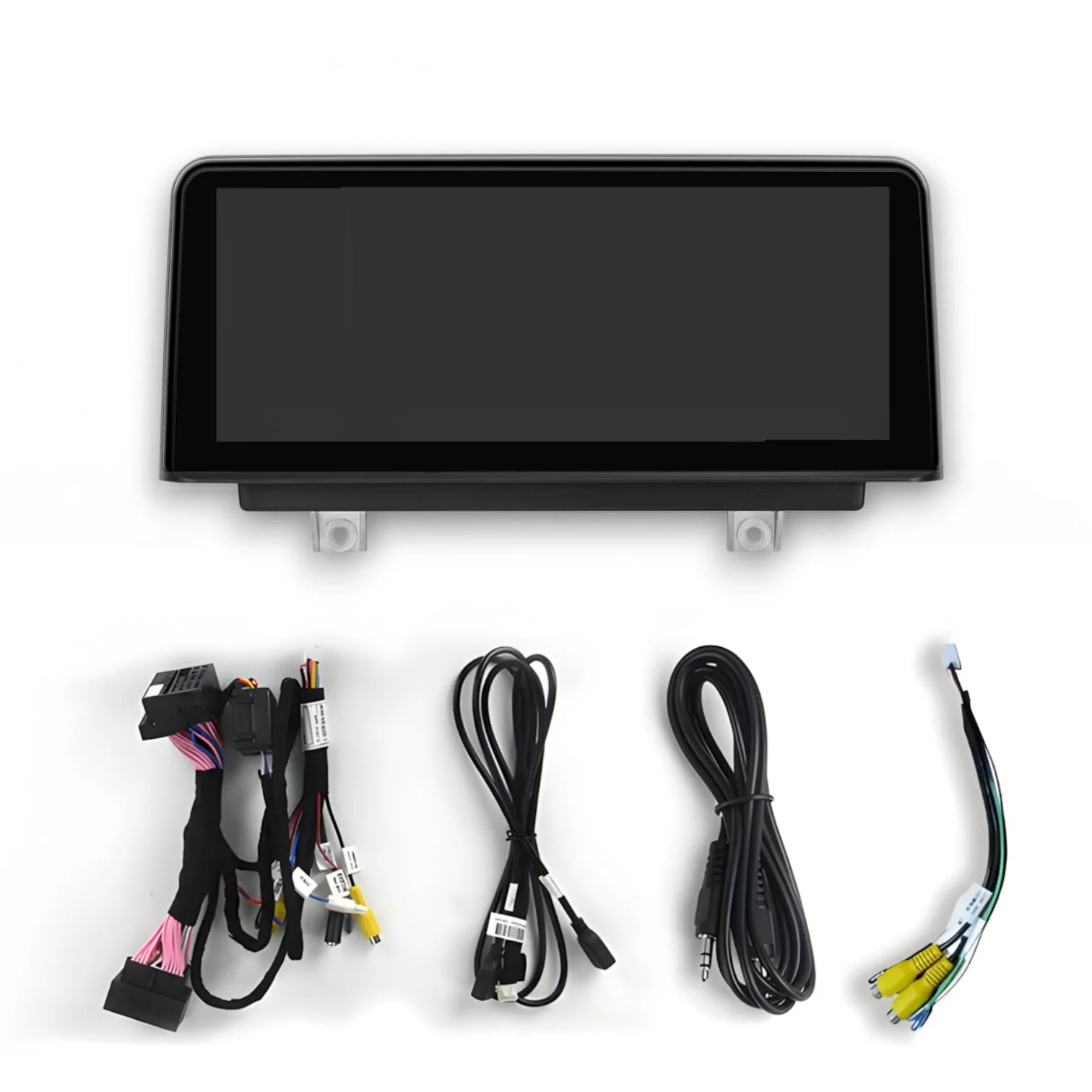

What’s Included

Item	Description
Display Unit	Linux multimedia touchscreen display
Power Harness	Vehicle-specific plug & play wiring harness
USB Cable	USB connection for media and updates
AUX Cable	AUX audio cable (installation optional depending on vehicle configuration)
Mounting Hardware	All required brackets and fittings

Specifications

Specification	Details
Operating System	Linux
Display Resolution	1920 × 720 IPS
Screen Sizes	10.25″ / 12.3″
Startup Time	Approx. 3–5 seconds
Connectivity	Wireless & wired CarPlay / Android Auto
Audio Output	Factory BMW Bluetooth or AUX

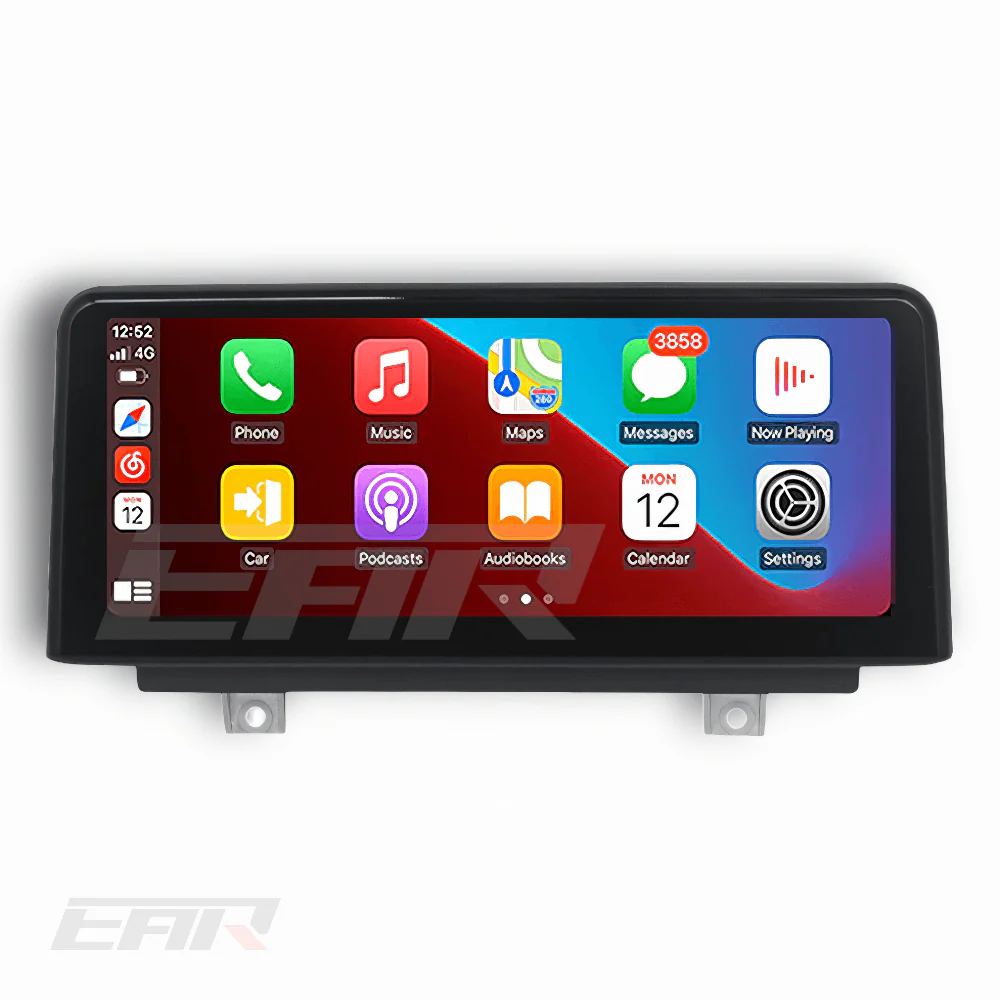

Difference Between Linux & Android

Feature	Linux System	Android System
Startup Time	3–5 seconds	8–12 seconds
Audio Integration	Uses original BMW Bluetooth and microphone, and supports AUX	Dual Bluetooth support, and supports AUX
App Access	CarPlay & Android Auto apps	Google Play Store (YouTube, Netflix, etc.)
Connectivity	Wireless & wired CarPlay / Android Auto	Wireless & wired CarPlay / Android Auto
Included Hardware	Power, USB, AUX cables	Power, USB, AUX, GPS antenna, 4G antenna, microphone
Advanced Options	OEM-focused simplicity and stability	SIM card support, built-in WiFi, RAM/ROM options, digital radio upgrade
